Particle board Galvanized steel raised flooring

This screw down floor is made up of a high performance particle board core. We wrap and laminate the core with a galvanised steel top sheet. The panel is then mechanically stitched for greater strength. This Particle board Galvanized steel raised flooring enables easy panel removal and replacement. The system provides full electrical continuity and static dispersion where required.

Panel Description

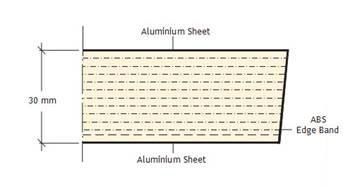

Particle board Galvanized steel raised flooring top and bottom sides of 30 mm high density Particle board Galvanized steel raised flooring is covered with aluminum sheet and trimmed for perfect fit. For protection of chipboard core and coverings, panel edges are laminated with ABS edge band. Loose laid carpet tiles and pvc tiles are used as a finish material.

Panel Specifications

Panel Class: Particle board Galvanized steel raised flooring Panel Type : TG / H30 Panel Dimensions: 600 x 600 mm Panel Thickness: ~ 30 mm Top Covering: Aluminum sheet Bottom Covering: Aluminum sheet Edge: ABS edge band Panel Weight: ~ 8,50 kg/panel System Weight: ~ 25,35 kg/m2 (For height 15-20 cm) Panel Core: 30 mm high density chipboard Fire Reaction: Bfl-s1

Panel Load Values     (according to EN 12825)

Working Load : 1,5 kN

Maximum Load: > 4,00 kN

Safety Factor: 3

Panel Load Deflection Class : 1B
