What Method is Used to Ensure Proper Ventilation in Server Rooms?

2023/5/19 15:08:42

A well-ventilated server room is crucial for maintaining the optimal operating conditions of the critical IT infrastructure housed within it. Adequate ventilation ensures efficient cooling, prevents equipment overheating, and contributes to the overall reliability and performance of the server room. In this article, we will explore the various methods and best practices employed to ensure proper ventilation in a server room, allowing for the safe and effective operation of servers, networking equipment, and other essential components.

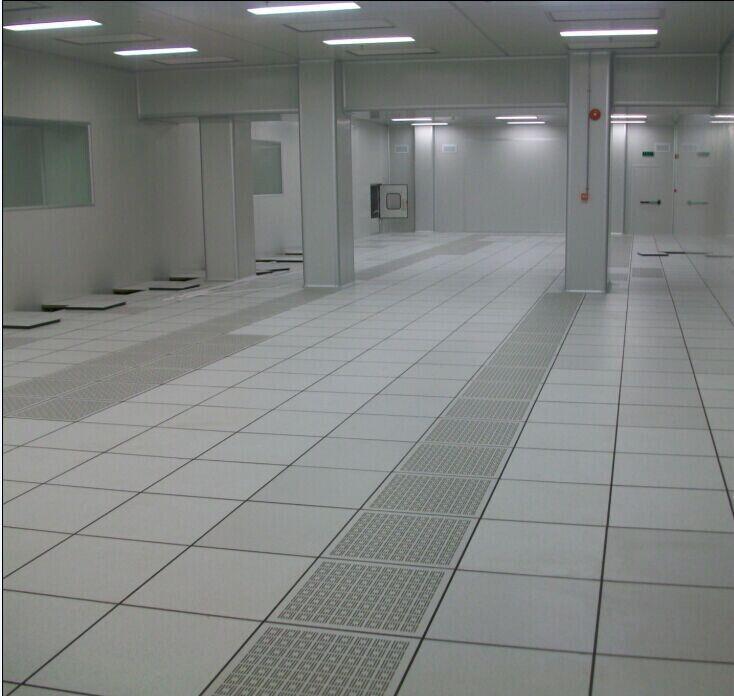

Server Room Raised Floor.jpg

I. Importance of Proper Ventilation in a Server Room

A. Heat Generation in a Server Room

Server rooms are densely packed with electronic equipment that generates significant amounts of heat during operation. Servers, storage devices, networking equipment, and power distribution units all contribute to the heat load. Without proper ventilation, this heat accumulates, leading to increased temperatures that can cause system failures, reduced performance, and potential damage to sensitive components.

B. Impact on Equipment Performance and Lifespan

Excessive heat negatively affects the performance and lifespan of IT equipment. High temperatures can lead to thermal throttling, where processors and other components automatically reduce their operating frequency to prevent overheating. This results in reduced computational power and slower response times. Prolonged exposure to elevated temperatures can also shorten the lifespan of electronic components, leading to premature hardware failures and increased maintenance costs.

C. Energy Efficiency and Cooling Costs

Proper ventilation plays a critical role in improving energy efficiency and reducing cooling costs in a server room. By efficiently dissipating heat, ventilation reduces the workload on cooling systems, enabling them to operate more effectively and consume less energy. Effective ventilation strategies can significantly contribute to a data center's overall energy efficiency and environmental sustainability.

II. Strategies for Proper Ventilation in Server Room

A. Hot Aisle/Cold Aisle Containment

The hot aisle/cold aisle containment strategy is a widely adopted method for managing airflow and optimizing cooling efficiency in server rooms.

  • 1. Cold Aisle: In this approach, server racks are arranged in rows, with the front sides facing each other to form the cold aisles. Cold air is supplied through server room perforated floor tiles or overhead vents into the cold aisles.

  • 2. Hot Aisle: The back sides of server racks face each other, forming the hot aisles. Hot air generated by the IT equipment is expelled into the hot aisles.

  • 3. Containment Measures: To prevent the mixing of hot and cold air, physical barriers such as doors, panels, and ceiling systems are installed to contain the hot and cold aisles separately. This containment minimizes bypass airflow, enhances cooling efficiency, and improves overall temperature management in the server room.

B. Raised Floor Ventilation

Raised floors offer an effective method for distributing cool air throughout a server room and removing hot air.

  • 1. Underfloor Plenum: The space created between the raised floor and the structural floor is known as the underfloor plenum. Cold air is supplied into this plenum, either through perforated tiles or dedicated vents.

  • 2. Perforated Tiles: Perforated tiles are strategically placed on the raised floor to allow cool air to enter the server room. These tiles should be positioned in a way that ensures uniform airflow distribution across the entire room.

  • 3. Hot Air Exhaust: Hot air generated by the equipment rises naturally and can be expelled through exhaust vents or returned to the cooling system for reconditioning. Proper placement of exhaust vents or return ducts is essential to ensure the effective removal of hot air from the server room.

C. Airflow Management Accessories

The use of airflow management accessories can significantly enhance ventilation efficiency in a server room.

  • 1. Blanking Panels: Blanking panels are used to cover empty rack spaces to prevent bypass airflow. These panels help direct the airflow through the active equipment, maximizing cooling efficiency.

  • 2. Brush Strips and Grommets: Brush strips and grommets are installed in cable entry points or openings to seal gaps and prevent the leakage of conditioned air. They maintain proper airflow patterns, prevent the ingress of dust and debris, and improve energy efficiency.

III. Environmental Monitoring and Control

To ensure proper ventilation in a server room, environmental monitoring and control systems play a crucial role in maintaining optimal conditions.

  • A. Temperature and Humidity Monitoring: Installing temperature and humidity sensors throughout the server room allows for real-time monitoring of environmental conditions. Threshold alerts can be set to notify administrators of any deviations from the recommended ranges, enabling proactive measures to be taken.

  • B. Airflow Measurement: Airflow sensors can be used to measure and analyze airflow patterns within the server room. This data helps identify areas with insufficient airflow or airflow restrictions, enabling adjustments to be made to improve ventilation efficiency.

  • C. Intelligent HVAC Systems: Deploying intelligent Heating, Ventilation, and Air Conditioning (HVAC) systems equipped with advanced controls and automation capabilities can optimize cooling efficiency based on real-time conditions. These systems can adjust cooling levels, fan speeds, and airflow distribution to maintain optimal temperatures while minimizing energy consumption.

IV. Best Practices for Maintaining Proper Ventilation

Proper ventilation requires ongoing maintenance and adherence to best practices to ensure the continuous functionality and effectiveness of the server room environment.

A. Regular Cleaning and Maintenance

Regular cleaning and maintenance of server room components are crucial to prevent the accumulation of dust and debris, which can obstruct airflow and hinder ventilation.

  • 1. Dust Removal: Regularly clean server racks, equipment, vents, and raised floor tiles to remove dust and debris. Vacuuming, compressed air, or specialized cleaning tools can be used to ensure effective cleaning without causing damage to sensitive components.

  • 2. Air Filter Replacement: If the server room employs air filtration systems, it is essential to replace filters according to manufacturer guidelines. Clogged or dirty filters reduce airflow and strain the cooling system.

B. Regular Equipment Inspections

Regular inspections of IT equipment help identify potential issues that may impact ventilation and cooling efficiency.

  • 1. Rack Organization: Ensure that server racks are properly organized, with cables routed neatly and airflow pathways unobstructed. Improper cable management can impede ventilation and disrupt airflow patterns.

  • 2. Check for Obstructed Vents: Inspect server racks and equipment to ensure that vents or fans are not obstructed by cables, labels, or other objects. Blocked vents restrict airflow and contribute to increased temperatures.

C. Capacity Planning and Scalability

Consider future growth and scalability when designing and implementing ventilation strategies. Plan for additional cooling capacity and ensure that the ventilation system can accommodate increased heat loads as the server room expands.

D. Regular Performance Monitoring

Continuous monitoring of environmental conditions, including temperature, humidity, and airflow, helps identify potential issues and ensures early detection of any deviations from optimal ventilation.

E. Professional Consultation and Auditing

Engaging professional experts and conducting periodic audits can provide valuable insights into the effectiveness of ventilation strategies. Consultants can analyze the server room environment, airflow patterns, and cooling system efficiency, recommending improvements and optimizations.

Proper ventilation is essential for maintaining the performance, reliability, and lifespan of IT equipment in a server room. By implementing strategies such as hot aisle/cold aisle containment, raised floor ventilation, and airflow management accessories, server room operators can ensure efficient cooling, prevent equipment overheating, and optimize energy consumption. Coupled with environmental monitoring systems and adherence to best practices for maintenance, inspections, and capacity planning, proper ventilation in a server room becomes a cornerstone of a robust and sustainable IT infrastructure, supporting critical operations and meeting the evolving demands of modern technology environments.
