HuiYa Access Floor Pedestal System - Floor Pedestal, Bracket, Brace & Holder for Support

Before using the anti-static floor pedestal, we need to know about the reasons. The raised floor pedestal has always been the quickest and cheapest solution for the installation and support of the raised floor system. The computer room anti-static floor needs to be adjusted to a proper height, which is suitable for a certain size, access floor pedestal is the customized option for the computer room, used for adjustment, the adjusting range is within 10 mm. Accessfloorstore.com raised floor bracket is made out of steel. Typically a two-part assembly consisting of a base and a head. The base is a flat plate welded to a square tube. The head has an all-thread rod welded to a flat plate with 8 holes. The all-thread rod is inserted into the tube and the height is adjusted with a locking nut.  Different applications will have different requirements to floor pedestals structure and installation method, like the OA raised floor pedestal and Computer Room Anti-static floor pedestal.


Raised Access Floor Pedestal Dimensions & Customization Service


Raised Access Floor Pedestal Tube Diameter: 25mm, 32mm, 38 mm, 45 mm, 50 mm

The diameter and thickness of the Access Floor Pedestal can be customized, the regular Pedestal Tube Diameter is Φ25mm (Diameter of the tube), however, engineers will have higher requirements on the Access Floor Pedestal configuration of some data center project. Then the Pedestal Tube diameter can be made to Φ25mm Tube Pedestal, Φ32mmTube Pedestal, Φ38mmTube Pedestal, Φ45mmTube Pedestal andΦ50mmTube Pedestal, which should be able to meet the high requirements of most occasions like computer rooms.

Low Profile Raised Access Floor Pedestal

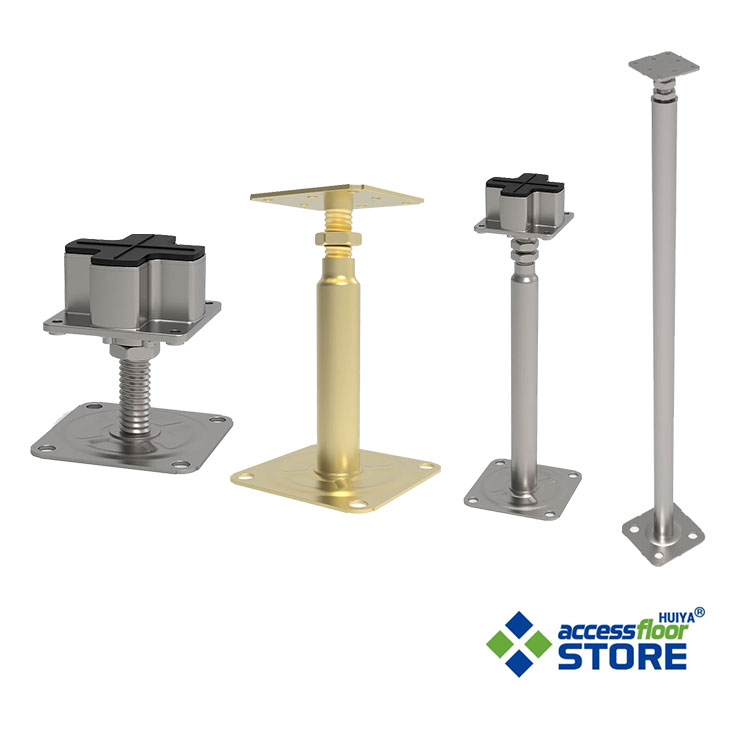

Huiya Raised Floor Pedestal (Supporter)

Raised Access Floor Pedestal Tube Thickness: 1.0mm, 1.5mm, 2.0mm, 3.0mm

The thickness of the Floor Pedestal Tube wall is a hidden factor. Generally, we can’t judge the thickness from the surface of pedestal, as long as cutting the cross section of the tube, it can be seen. The standard thickness of a common pedestal tube is 1.0 mm and 1.2 mm. According to the different customization requirements, our manufacturer can produce 1.5 mm, 1.8 mm and 2.0 mm and 3.0 mm types, providing multiple options of access floor pedestal for customization customers.

Head Plate of Raised Floor Pedestal (Head Pedestal)

Generally, the head plate of the access floor can be divided into two types: square head plate and round head plate. The size of a square head plate is 75 mm * 75 mm, the thickness is 3 mm, this type suitable for all steel anti-static floor series, while the round head plate is 95 mm * 95 mm, thickness is 3 mm as well, it is ideal for calcium sulfate electrostatic floor and all-aluminum cast aluminum anti-static floor. We can produce the pedestal head plate thickness of 4-5 mm to offer customized requirement solutions for the engineering department.

Base Plate of Raised Floor Support Pedestal

There are many kinds of the base plate of access floor pedestal. The size can be divided into 95 mm, 125 mm and 150 mm. 95mm x 95mm x 2mm is normal size. Customized base plate can be made in 3mm and 4mm.

Floor Finish Height of Raised Access Floor Pedestal

The floor finish height of the access floor pedestal can be customized according to the requirements of the construction site project. The finish height of access floor pedestal can be made into 55 mm, and the highest one can be customized to 1500 mm. The height can be customized according to the flexible requirements.

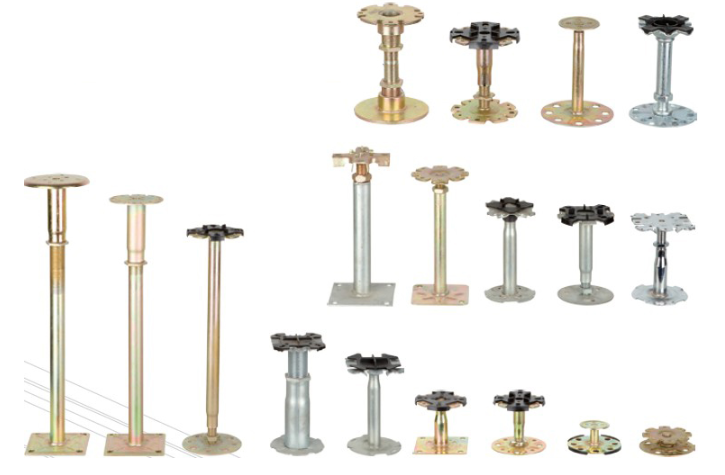

Raised Floor Pedestals - Huiya Access Floor Supporters.jpg

Thread rod size of Raised Access Floor Pedestal: M18, M22, and M28.

The color of Raised Access Floor Pedestal

The color types can be customized, it can be divided into the galvanized type and spray paint type. The galvanizing process is white galvanizing and yellow galvanizing. The spray paint type is the external spray paint of the pedestal. Both methods can have an anti-rust effect.
