800lbs Bare Raised Floor

800lbs Bare Raised Floor

PRODUCT DETAILS

800lbs Bare Steel Concore Raised Floor Panel

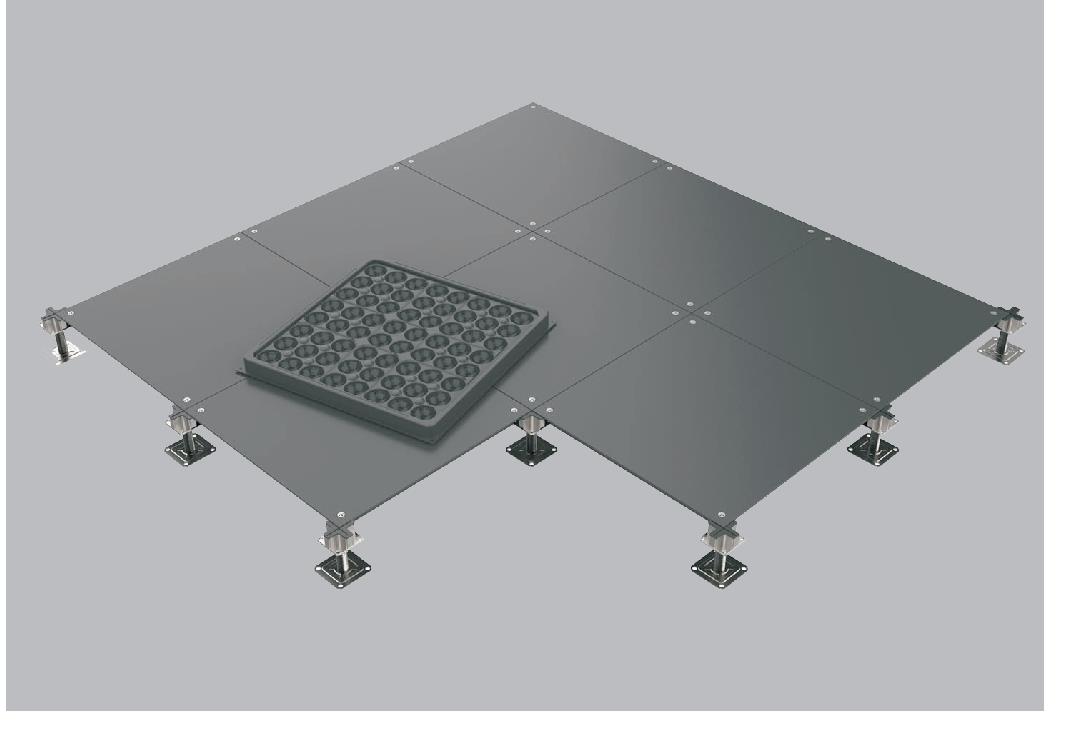

This OA Bare Raised Floor Panels with 800lbs loading capacity are perfect flooring solution for general offices, learning institutions, casinos, libraries, banks, showrooms, etc. The 800lbs Bare Steel ConCore Panel is made of quality steel plate, which is stretched forming welded and sprayed with bubble cement filled in its inner cavity. Its pedestal is plated with zinc and cast aluminum alloy, whose height is adjustable and can be self-locked. The steel panel can be shaped by either slicing or riveting.

800lbs Bare Raised Floor Panel Specification

SYSTEM NAME:

800LBS OA600 RAISED FLOOR

DESCRIPTION

800LBS OA600 RAISED FLOOR is considered the classic system for commercial environments. It is widely used for office building and data cable management.

COMPLIANT STANDARDS

CISCA Recommended Test Procedures for Access Floors (2007)

SIZE   600mm x 600mm

DEPTH   33mm

CORE   Cementitious Compound

FINISH

Standard powder coated finish.

CONSTRUCTION

The panels consist of a hardened steel top and bottom sheet plate with corrosion resistant protection, inside and out,encapsulating a structural cementitious core.

TOLERANCE

±0.25mm and a flatness tolerance of ±0.5mm measured on a diagonal across the top of the panel

CONNECTION

The panel is screw fixed to the pedestal head at all four corners.

PERFORMANCE TO STANDARD GUILD PER CISCA Recommended Test Procedures for Access Floors (2007)

Load  LevelPanel(KG)System(Kg/m2 at 150mm FFH)
800LBS13.540.9
STATIC PERFORMANCE (KN)
Concentrated LoadImpact LoadUltimate Load
3.50.68.8
DYNAMIC PERFORMANCE(KN)-Passes
10 passes (wheel size 75x25mm)10,000 passes (wheel size 150x50mm)40,000 passes (wheel size 200x75mm)
2.62.62.25

*All tests are performed using CISCA Recommended Test Procedures for Access Floors

1:Concentrated Load is based on permanent set   0.010” and is verified by loading panels in accordance with the CISCA concentrated load method but with panels installed on actual understructure instead of steel blocks.
2:Safety Factor is Ultimate Load divided by Design Load. The Concrete Panel has a Safety factor of 1.5

PEDESTAL SIZE

85x85 base plate

PEDESTAL CONSTRUCTION

Cold dipped galvanized steel pedestal base, head, and rod. Aluminum head assembly.

COMPLIANT STANDARDS

The pedestal will be provided with an adjusting and locking nut to maintain the assembly at a selected height,which requires a deliberate action to change the height setting,and which prevents vibration displacement.

PEDESTAL FINISH

Cold dipped galvanized finish

PEDESTAL CONNECTION

The panels consist of a hardened steel top and bottom sheet plate with corrosion-resistant protection, inside and out, encapsulating a structural cementitious core.

PEDESTAL FINISHED FLOOR HEIGHT (FFH)

The finished floor height of the access floor is measured from the subfloor to the top surface of the installed access floor.
