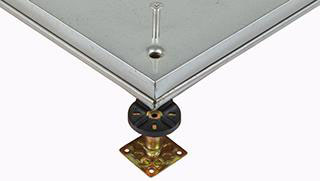

Calcium Sulphate Galvanized steel raised flooring

Panel Description

Top and bottom sides of 30 mm high density chipboard panel is covered with aluminum sheet and trimmed for perfect fit. For protection of chipboard core and coverings, panel edges are laminated with ABS edge band. Loose laid carpet tiles and pvc tiles are used as a finish material.

Panel Specifications

Panel Class: Calcium Sulphate Galvanized steel raised flooring Panel Type: CS7 / H28 Panel Dimensions: 600 x 600 mm Panel Thickness: ~ 32 mm Top Covering : Aluminum sheet Bottom Covering: Aluminum sheet Edge: Aluminum sheet Panel Weight: ~ 8,50 kg/panel System Weight: ~ 25,35 kg/m2 (For height 15-20 cm) Panel Core: 30 mm high density chipboard Fire Reaction: Bfl-s1

Panel Load Values     (according to EN 12825)

Working Load : 1,5 kN

Maximum Load: > 4,00 kN

Safety Factor: 3

Panel Load Deflection Class : 1B

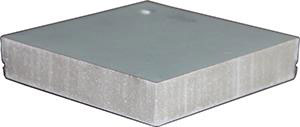

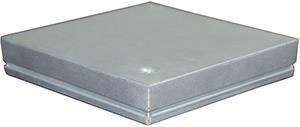

Encapsulated Calcium Sulphate Panel

Poduct Structure:

. The panel is then encapsulated by A grade Galvanized Steel from 6 sides of the panel.

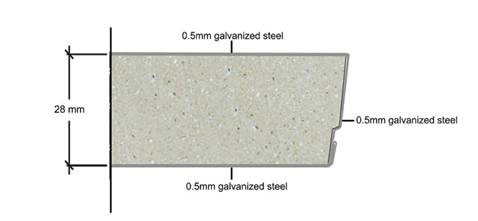

Panel Cut View-1

Panel Cut View-2

Product Feature:

1. Water-proof,   fire-proof, anti-corrosive and sound insulation.

2. High dimension   accuracy and excellent  interchangeability.

3. Good loading   performance.

4. Elaborated made   and good decorative effect.

Application:

Products are widely   used in tele-communication, power,micro-elctro control rooms, computer room,   power control center, cleanroom, etc...

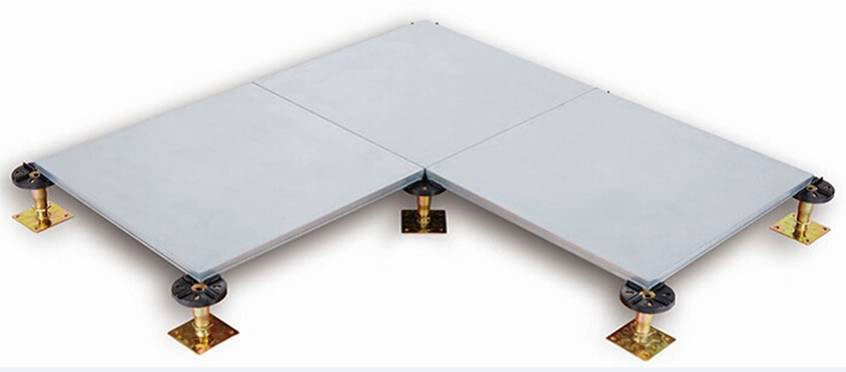

Installation Methods:

Loading Chart:
