Calcium Sulphate HPL raised flooring

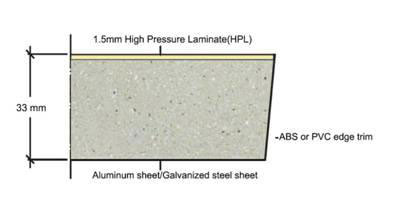

Encapsulated calcium sulphate panel consists of high-strength calcium sulphate (calcium silicate or cement particle board) core. Top and bottom steel sheet is bonded to the core with profiled edges.

Panel Specifications

Panel Class: HPL covered panel Panel Type: TG / H30 Panel Dimensions: 600 x 600 mm Panel Thickness: ~ 32 mm Top Covering: HPL Bottom Covering: Aluminum sheet Edge: ABS edge band Panel Weight: ~ 8,50 kg/panel System Weight: ~ 25,35 kg/m2 (For height 15-20 cm) Panel Core: 30 mm high density chipboard Fire Reaction: Bfl-s1

Panel Load Values     (according to EN 12825)

Working Load       : 1,5 kN

Maximum Load: > 4,00 kN

Safety Factor: 3

Panel Load Deflection Class : 1B

Full steel encasement with excellent sealing

• Elaborately made, high dimensional accuracy and smooth

floor surface

• Good load and impact load capacity and excellent anti[1]static properties

• Environmentally friendly core materials

• Waterproof, fire-proof, antisepsis and sound insulation

UnderStructure:

• Pedestal assemblies are surface finished with galvanizing which

make it anti-rust and corrosion-resistant

• Versatile understructure for all types of installations

• Electrical resistance of less than 10 ohms

• Engineered for positive engagement between panel and pedestal

• Quick and easy accessibility
