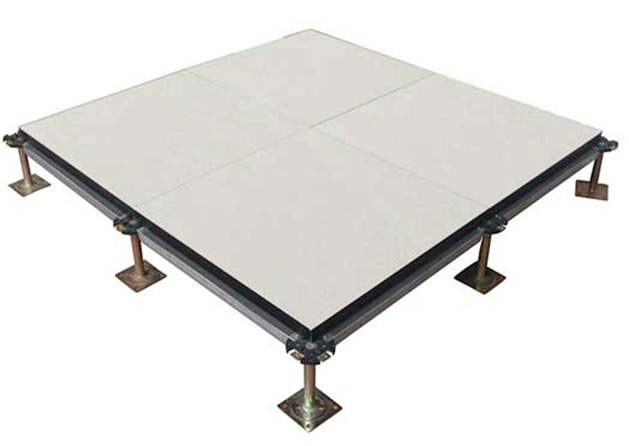

Calcium Sulphate Stone raised flooring

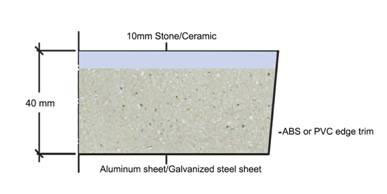

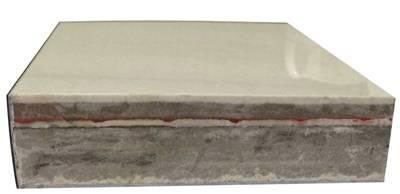

Calcium Sulphate Stone raised flooring consists of high-density  (1500Kg/m3 ) calcium sulphate core. Galvanized steel sheet is bonded to the bottom of the calcium sulphate core. Ceramic or stone is sticked to the top of the calcium sulphate core, four edges are sealed with PVC edge trims.

Panel Specifications

Panel Class : Calcium Sulphate Stone raised flooringPanel Type: CS8 / H40 Panel Dimensions: 600 x 600 mm Panel Thickness: ~ 32 mm Top Covering: stone or ceramic Bottom Covering: Aluminum sheet Edge: ABS edge band Panel Weight: ~ 8,50 kg/panel System Weight: ~ 25,35 kg/m2 (For height 15-20 cm) Panel Core: 30 mm high density chipboard Fire Reaction : Bfl-s1

Panel Load Values     (according to EN 12825)

Working Load: 1,5 kN

Maximum Load: > 4,00 kN

Safety Factor: 3

Panel Load Deflection Class : 1B

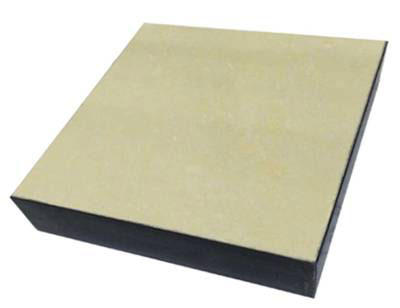

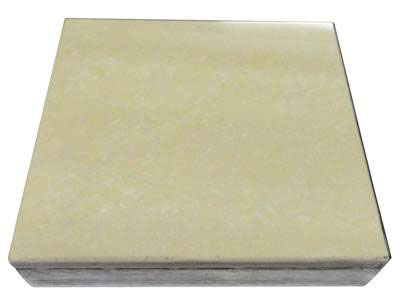

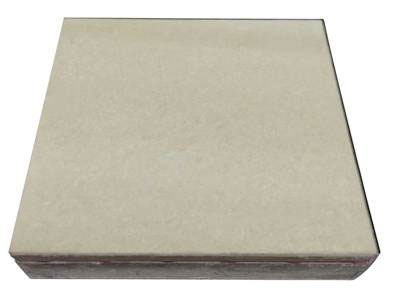

Calcium Sulphate Panels with Ceramic Finish

Product Feature:

1. Water-proof,   fire-proof, anti-corrosive and sound insulation.

2. High dimension   accuracy and excellent  interchangeability.

3. Good loading   performance.

4. Elaborated made   and good decorative effect.

Application:

Products are widely   used in tele-communication, power,micro-elctro control rooms, computer room,   power control center, cleanroom, etc...
