ACCESSFLOORSTORE is a floor Resource Platform. Customer Find Small Quantity Floor Products from "LOCAL STORE" Customer Find Large Quantity Floor Products from "FACTORY ADVERTISEMENT" From Company profile and Products details. ACCESSFLOORSTORE Shares Local Store and Factory Advertisement Contact Method.
Next Level 1250lbs All-Steel Raised Floor
Next Level 1250lbs All-Steel Raised Floor

Sell Type: Local Store

Product Attributes:

Website: https://www.nextlevelcr.com/

TEL: +1 905 580 1551

Email: [email protected]

PRODUCT DETAILS

Next level 1250lbs Data Center Steel Anti-Static HPL Raised Access Floor

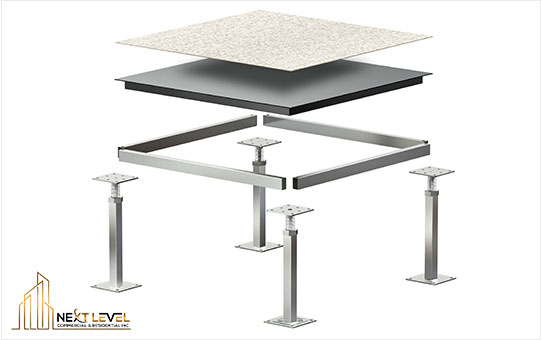

Next Level 1250lbs Data Center HPL steel anti-static raised access floor structure adopts 0.8mm SPCC hard steel on the upper layer, 1.2mm ST14 tensile plate on the bottom, with high-quality cement-filled inside, anti-cracking 1.5mm High Pressure Laminate(HPL) coated on the surface, and conductive strip plated on all edges. Next Level Raised Access Floor pedestal is equipped with a high-quality 4mm steel plate-pressed bracket, height-adjustable threaded rod,hot dip galvanized zinc coating and stringer made of square tubes. We keep excellent quality, thoughtful after-sales service, and competitive prices to ensure our customers' benefit!

Next Level 1250 Data Center Raised Floor Applications

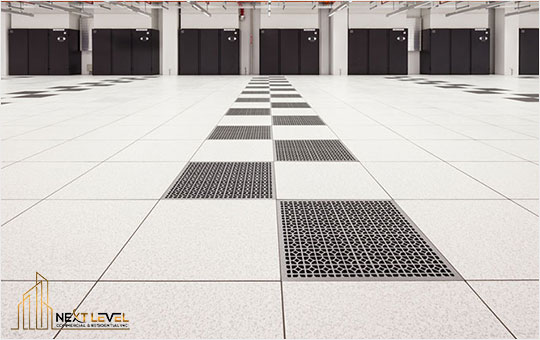

Widely used in program-controlled computer rooms, control rooms, laboratories, classrooms, microelectronics production, Data center.

Next level 1250lbs Raised Access Floor Specification

  • Panel weight : 9.5 lbs/ft² bare

  • Szie:610mm x 610mm x 35mm

  • All steel welded construction filled internally with a cementitious core material

  • Protected from corrosion by an epoxy paint finish

  • Class A flame spread rating

  • Non-combustible material

Why Next Level Data Center Raised Access Floor?

While cooling is an essential factor and an advantage of having a next level data center raised access floor, it also is used for quite a few reasons 3; of them are as follows:

  • Space management: sufficient space to place the quantity of power and communication cable needed to aid the data center workflow.

  • Cost-effective: Raised access flooring in data centers offers cost-saving with OpEx and CapEx in the long run. It is true that during the construction, having a raised floor does cost more, but it is an investment that reduces the operational cost.

  • Cable and Server Management: With the kind of environment it is built-in, which can support particular racks for the mounted server, the cables' management is better when there are higher heat densities. It also allows the IT staff to control and maintain the server easily.

  • Data center raised access floors offer a wide range of benefits that help with the center's optimal operation, which allows the company to provide the best service to their clients. Hence most data centers opt for raised flooring for the advantages it offers.

System Performance

Next Level is tested by CISCA Testing Methods
System Performance Criteria (Tested on Actual Understructure*)

System Type

System Weight (lbs/ft2)

Static Loads

Rolling Loads

Impact Loads

Panel

Understructure

Design Loads

Minimum
Ultimate Loads

Safety Factor
(min 2.0)2

10 Passes

10,000 Passes

Next Level 1250lbs raised access floor

Bolted Stringer

9.5lbs/ft2

1250 lbs

2500 lbs

PASS

1000 lbs

800 lbs

150 lbs

*All tests are performed using CISCA's Recommended Test Procedures for Access Floors with the exception of Design Load

1.System Design Load is based on permanent set ≤ 0.010” and is verified by loading panels in accordance with the CISCA concentrated load method but with panels installed on actual understructure instead of steel blocks. (Testing on blocks does not represent performance of an actual installation.) Ultimate, Rolling, and Impact Load tests are performed using CISCA Test Procedures.

2. Safety Factor is Ultimate Load divided by Design Load.
