Particle board HPL raised flooring

Panel Description

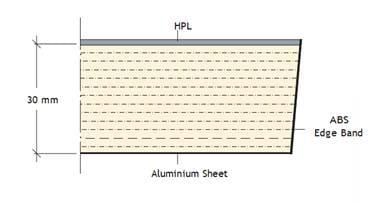

30 mm High densityParticle board HPL raised flooring is covered with factory applied HPL on top, aluminum sheet at bottom and trimmed for perfect fit. For protection of chipboard core and coverings, panel edges are laminated with ABS edge band. Covering options are wide range of colors and patterns.

Panel Specifications

Panel Class: Particle board HPL raised flooring Panel Type: TG / H30 Panel Dimensions: 600 x 600 mm Panel Thickness: ~ 32 mm Top Covering: HPL Bottom Covering: Aluminum sheet Edge: ABS edge band Panel Weight: ~ 8,50 kg/panel System Weight : ~ 25,35 kg/m2 (For height 15-20 cm) Panel Core: 30 mm high density chipboard Fire Reaction: Bfl-s1

Panel Load Values     (according to EN 12825)

Working Load    : 1,5 kN

Maximum Load: > 4,00 kN

Safety Factor: 3

Panel Load Deflection Class : 1B
