Perforated Anti Static Raised Floor

Perforated Anti Static Raised Floor

PRODUCT DETAILS

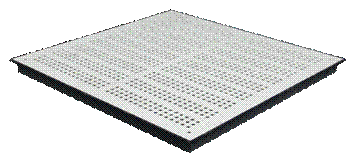

Perforated Anti Static Raised Flooring

Perforated anti static raised flooring(it is also called Ventilation panel), HPL or PVC punched tile, surface punched panel which is SPCC-ID hard steel of Shanghai Bao steel, manual welding for the bottom square tube, origination domestic. Imported paint, conductive rim, pedestal, stringer are pressured forming with steel, lead screw could adjust height.

Our Perforated Anti Static Raised Flooring is suitable computer room, network service room monitor control center, electronic workshop, clean room, dustless chamber etc and occasions which require on anti-static and air conditioning.

Competitive Advantage of 42% air rate Perforated Antistatic Raised Flooring:

1. High density particle board,PVC/ABS edge trim, sound proof of 42% air Perforated anti static raised flooring

2. Adjustable height for pedestal , assembly agility, large wire, good exchange ability.

3. Outlet mating . Elegant appearance for paving wildly brand top tiles.

4. High loading capacity of 42% air rate ,excellent raised flooring in 21th

5. Light weight ,convenient removing of 42% air rate?

Structure

image002.gifPHYSICAL DATA

Weight of Bare Panel:(14KG)

Height of Bare  Panel:(35mm)

Fire Rating of Bare Panel:

-Class A Flame Spread

-Non-Combustible Materials

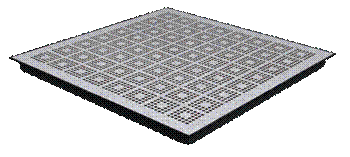

Perforated raised floor systems (Conductive Vinyl)

image004.gifPERFORMANCE DATA

Concentrated Load Rating:   (3.59 kN)

Uniform Load Rating:   (19.79 kg/m2)

Ultimate Load Rating:      (10.79KN)

Impact Load Rating:          (79 Kg)

Rolling Load Rating:

-CISCA Wheel A (10 Pass):   (2.59 kN)

-CISCA Wheel B (10K Pass):  (2.21 kN)



COLD_ROLL STEEL SHEETS

RAISED FLOOR MATERIALS:

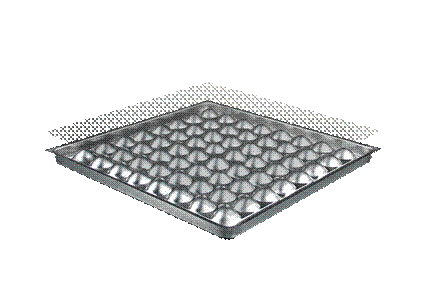

1:Our Perforated anti static raised flooring is made of cold-roll steel sheets, In the bottom steel sheet, it is formed by the machines and 64 cups on the bottoms to make the raised floor strength. The top steel sheet and the bottom steel sheet is welded  by weld machines.

2:When raiseld floor shell finished, raised floor is sprayed the powder and dried by the super oven?

3:Then raised floor is infilled the cement into the raised floor shell and, waitting cerment drying. After cleaning, the bare raised floor is completed.


Molding powder

MOLDING POWDER:

Generally, the molding powder is black color and it is used to protect the raised floor for anti-corrosion, but for the customise necessity, multi-color molding powder is provied if customer who has the long term relationships with the our company


FINISHES TILES

COVEER/TILES

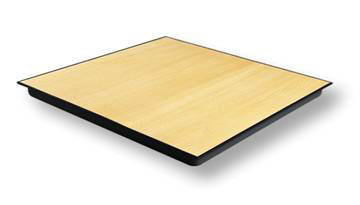

HPL Tile    (Static Dissipative)

VINYL Tiles  (Static Conductive)

RubberTile:  (Anti-static )

Contact HUIYA for other tile options such as Bamboo, Cork, Ceramic, Wood, Stone, etc.
